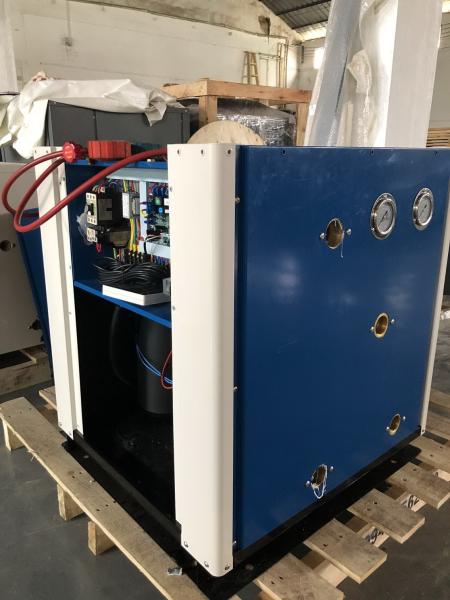

Water Source Heat Pump
1.10 year's experiences
2.ISO, CCC and CE approval
3.High COP, EER, 75%Energy-Saving
4.High quality
Water Source Heat Pump
1. 10 year's experiences
2. ISO, CCC and CE approval
3. High COP, EER, 75%Energy-Saving
4. Automatical high/low pressure protection
5. Service life can reach up to 15 years, Low maintenance cost
5. Low noise, Safety, Easy installation, Intelligentized manipulation
Structure:
1. Condenser of water source heat pump:
2. Evaporator of water source heat pump:
3. Electronic expansion valve: 4. Compressor:
5. Control Panel:
-
Our Company
Water Source Heat Pump parameter table:
| Item(unit) |
GSH19 |
| Rated input power(Kw) |
4.4 |
| Rated heating capacity(Delivered)(Kw) |
19 |
| Rated cooling capacity(Kw) |
14 |
| Rated voltage(V) |
380 |
| Rated frequency(Hz) |
50/60 |
| Rated current(A) |
9 |
| Rated outlet water temperature( °C) |
55 |
| Maximum outlet water temperature( °C) |
60 |
| Cold water temperature drop( °C) |
3~5 |
| Water flow(L/H) |
5500 |
| Pipe size of load side diameter(mm) |
Dn25 |
| Pipe size of heat source side diameter(mm) |
Dn25 |
| Dimensions(mm) |
770*640*730 |
| Packing Dimensions(mm) |
810*680*750 |
| Weight(Kg) |
170 |
| Level of security |
IP×4 |
| Electric shock protection grade |
1 grade |
| Noise(Db) |
≤50 |
| Refrigerant |
R417A/R407C/R404A/R22/R134A |
| Compressor |
Copeland |
| Condenser |
Double pipe heat exchanger |
| Evaporator |
Shell and tube heat exchanger |
| Throttle units |
Electronic expansion valve/
thermal expansionvalve/capillary |
| Control System |
Multi-Control |
Remarks: the test of conditions of above parameter: the water of heat source side 15°C, the water temperature of load side 15°C, output water temperature 55°C.
